FORMODAL® 030
cast • surface machined
PVC coated on both sides
Specially for:
– tool making, mold making and model making
Available forms:
– sheets
– plates
– cuttings in nearly all requested lengths, widths and thicknesses
– circular blanks
– rings
– shaped blanks as per drawing
– parts as per drawing
Special features of this material:
– Surface machined cast plates
– Very good machinability
– Excellent corrosion resistance
– Good welding properties
– Low stress and dimensionally stable
Applications:
– Tool making, mold making and model making
– Blow molds and injection molds
– Laminating tools
– Molds for elastomer materials
– Molds and heat-stressed parts
– Molds with welded construction
– Refrigeration technology
FORMODAL® 030 plain cast plates (aluminum data sheet)
| Thickness inches | Length x Width inches |
|---|---|
| 0.197″ x 6.30″ | 118.90″ x 59.84″ |
| 0.197″ x 6.30″ | 144.49″ x 61.81″ |
| 0.394″ x 6.30″ | 157.48″ x 85.04″ |
| 0.394″ x 3.35″ | 236.22″ x 85.04″ |
| 0.394″ x 4.72″ | 240.16″ x 59.84″ |
Tolerances:
| Thickness inches | Flatness inches | Thickness tolerance inches |
|---|---|---|
| ≥ 0.196″ – ≤ 0.236″ | 0.030″ – 0.033″ | ± 0.003″ |
| ≥ 0.236″ – ≤ 0.499″ | 0.014″ – 0.017″ | ± 0.003″ |
| ≥ 0.500″ | 0.003″ – 0.005″ | ± 0.003″ |
DOWNLOAD

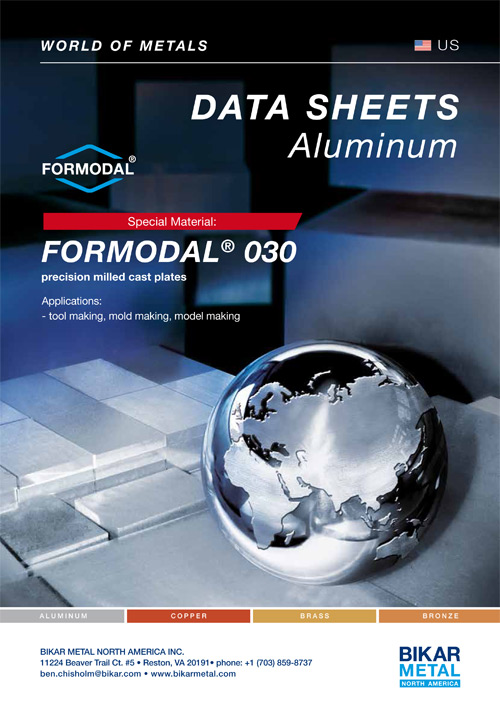

FORMODAL® 030 plain cast plates
Data Sheets Aluminum US (PDF: 283 kB)
