FORMODAL® BM-7075
Precision milled rolled plates
rolled • precision milled on both sides
PVC coated
Specially for:
– tool making, mold making, model making
– aerospace
– military technology
Very high strength.
Available forms:
– plates
– cuttings in nearly all requested lengths, widths and thicknesses
– circular blanks
– rings
– shaped blanks as per drawing
– parts as per drawing
Special features of this material:
– Surface machined plates
– Heat treatable alloy
– Very high strength
– Good machinability
Applications:
– Tool making, mold making and model making
– Aerospace
– Military technology
FORMODAL® BM-7075 precision milled rolled plates (aluminum data sheet)
Standard dimensions:
118.90 x 59.84 in.
Tolerances:
| Thickness tolerance inches | Flatness tolerance inches1 | |
|---|---|---|
| 0.394″ – 0.591″ | ± 0.004″ | < 0.031″ |
| 0.591″ – 3.543″ | ± 0.004″ | < 0.02″ |
Other dimensions on request.
1 This specification refers to the total area; not only to sections of a plate or a pre-cut part.
By dividing the surface, the flatness is not reduced proportionately.
Surface roughness:
Ra 15.75 μin
DOWNLOAD

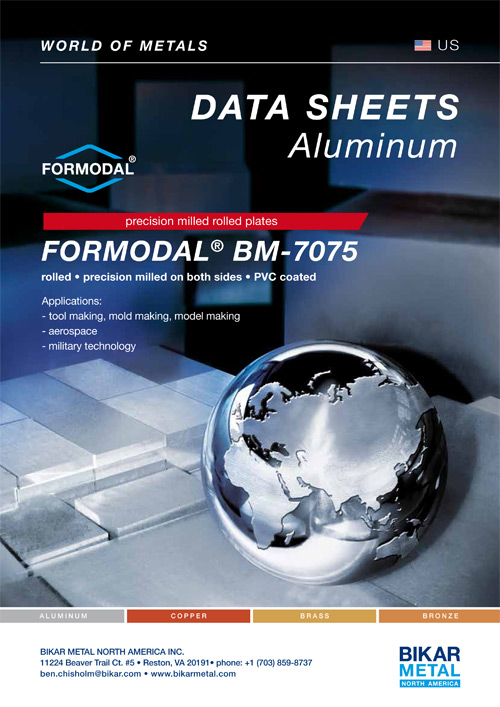

FORMODAL® BM-7075 precision milled rolled plates
